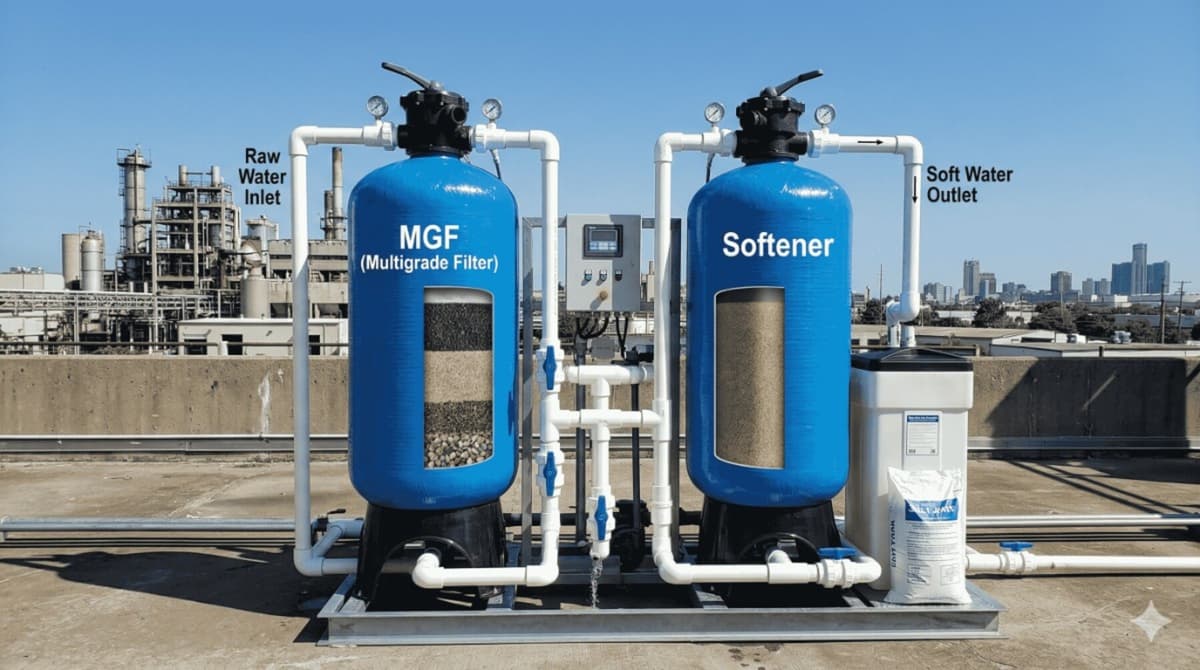

Commercial & Industrial Water Softeners Manufacturer in Baddi, Himachal Pradesh

Water softening works through 'Ion Exchange.' Raw water passes through a bed of Sodium-form Cation resin. The resin beads capture Calcium and Magnesium ions (hardness) and release an equivalent amount of Sodium ions, resulting in 'soft' water that does not form scale.

Even a 1mm layer of scale inside a boiler can reduce fuel efficiency by up to 10% and eventually lead to tube failure due to overheating. Softeners ensure the feed water is zero-hardness, keeping the heat transfer surfaces clean and efficient.

A softener is exhausted when the 'Hardness Leakage' occurs. We determine the OBR (Output Between Regeneration) based on your water hardness and resin volume. Our automated systems use water meters to trigger regeneration exactly when needed.

Salt is used during the regeneration phase. A concentrated brine solution is passed through the resin bed to 'force' the captured Calcium and Magnesium off the resin beads, recharging them with Sodium ions for the next service cycle.

No. A water softener only replaces hardness minerals with sodium. The total number of dissolved solids remains roughly the same. To reduce TDS, a Reverse Osmosis (RO) or Demineralization (DM) plant is required.

Down-flow is standard, but Up-flow (Counter-Current) regeneration is more efficient. It uses less salt and water, and produces higher quality soft water with lower hardness leakage, making it our preferred design for premium industrial skids.

High-quality resin typically lasts 3 to 5 years. Lifespan is reduced by high levels of Chlorine (which oxidizes the beads) or high Iron content (which coats/fouls the resin). We recommend proper pre-filtration to maximize resin life.

While soft water is excellent for cleaning and machinery, it is often not recommended as a primary source of drinking water because of its increased sodium content. For drinking, we recommend a domestic or commercial RO system.

The brine tank should be periodically cleaned to remove 'salt mush'—un-dissolved salt that settles at the bottom. It is also critical to ensure that only high-purity solar salt or refined salt pellets are used to prevent valve clogging.

The multiport valve controls the flow of water during service, backwash, brine suction, and rinsing. We offer both high-quality manual valves and fully automatic, programmable top-mount valves for hands-free operation.
